Installation and Start-up


Lift the battery cover using the tab located at the bottom of the phone, and remove the battery by lifting from the notch at the top of the battery compartment.

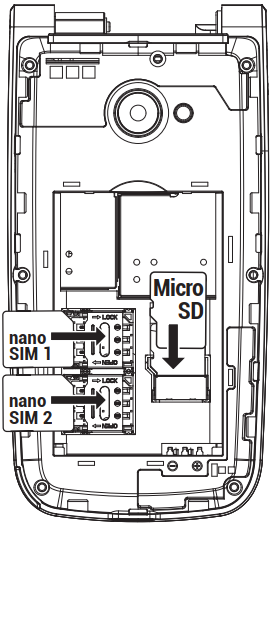

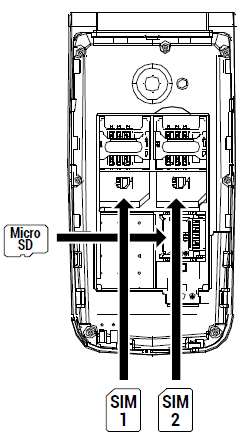

Insert the SIM card(s) (MiniSIM format for version 1.x, NanoSIM for version 2.x) in the indicated position, matching the gold contacts of the phone and the card(s).

If applicable, insert the Micro SD memory card in the indicated position.

Insert the battery, matching the gold contacts on the phone and the battery.


To charge the device, connect the power adapter to the USB C connector on the bottom of the phone. Do not force the connection if it is not immediate.


Before starting to use it, remember to remove the screen protector.


Press and hold the power key for a few seconds to turn on the phone. Enter the PIN that appears on your SIM card. If you insert two SIM cards, the phone will request the PIN for SIM 1 first and then for SIM 2.

Press and hold this key to turn off the phone.

NOTE: The personal identification number (PIN) protects the SIM card from unauthorized use. The PIN unlock key (PUK number) allows you to unlock a blocked PIN. The PIN and PUK are provided with the SIM card. For more details, contact your operator.
