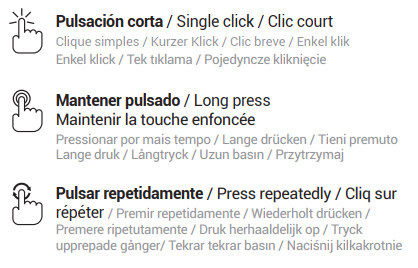

In the following figures, these symbols are used for the different types of key presses:

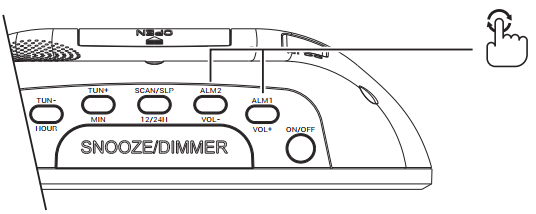

Setting the Time
- In STANDBY mode (time on display), press and hold MEM/CLK until the digits on the display start blinking.
- Press 12/24H SCAN/SLP to select 12-hour or 24-hour format. If 12-hour format is selected, the PM indicator will light up after noon.
- Press MIN/TUN+ to set the minutes.
- Press HOUR/TUN- to set the hour.
- Press MEM/CLK to confirm the time settings.
Setting the Alarms
The FRODI VIEW clock radio has two alarms: ALM1 and ALM2.

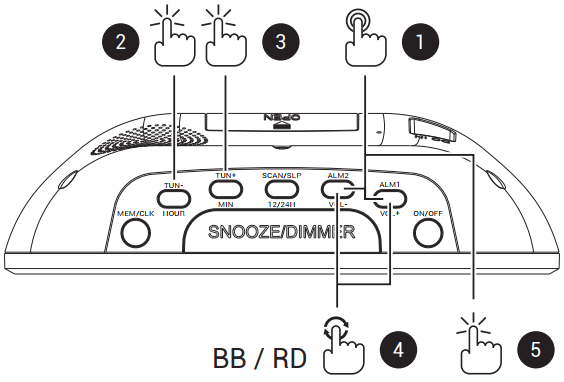

Create an Alarm:
- In STANDBY mode, press and hold ALM1/VOL- until the digits and the ALM1 indicator start blinking.
- Press HOUR/TUN- to set the alarm hour.
- Press MIN/TUN+ to set the alarm minutes.
- Press ALM1/VOL- repeatedly to select the alarm type: bb (buzzer) or rd (radio). Wait two seconds for the value to be saved and for the display to return to STANDBY.
When the alarm is active, the ALM1 indicator (white dot) appears on the screen.
To set the second alarm, ALM2, repeat the same steps with ALM2/VOL-.
Activate/Deactivate Alarm:
In STANDBY mode, press ALM1/VOL+ repeatedly to activate or deactivate the alarm and to select the type (rd – radio, or bb – buzzer).
For Alarm 2, follow the same steps with ALM2/VOL-.
When the alarm sounds, press ON/OFF to stop it.

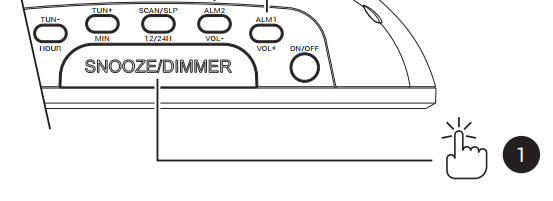

Snooze Function
When the alarm sounds, press SNOOZE/DIMMER to delay it for 9 minutes.
This function can be used up to 5 times, delaying the alarm 9 minutes each time.
