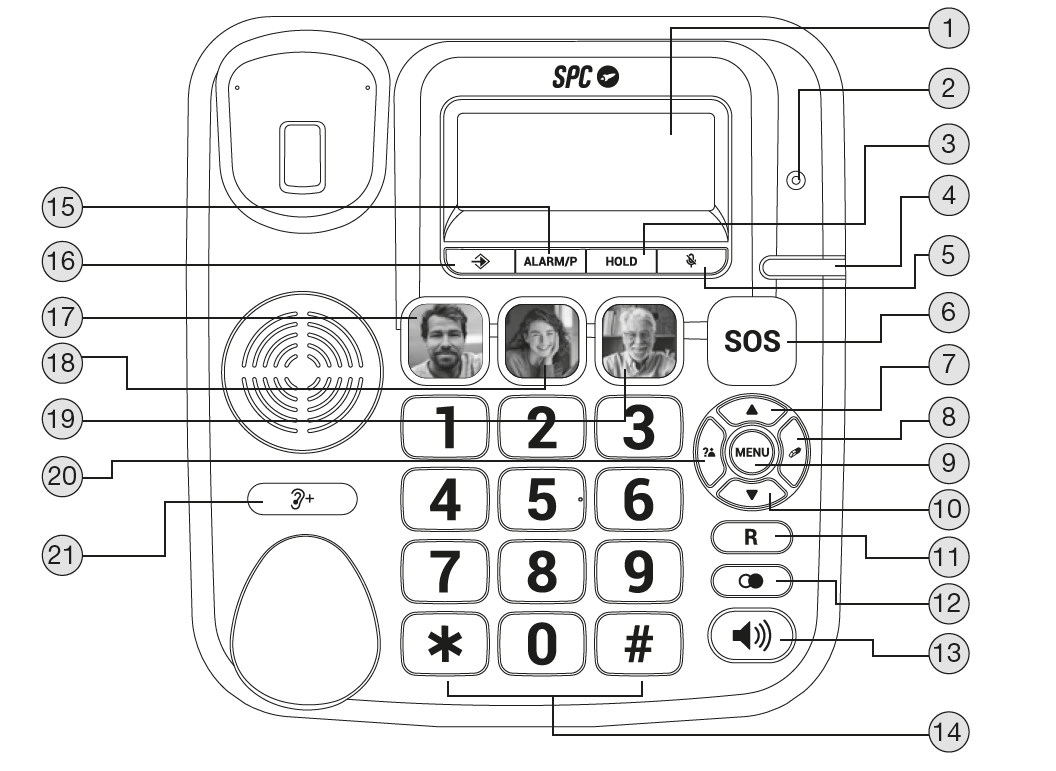

- LCD display.
- In-use LED: Lights up when the phone is off-hook or on a call.
- Hold key (HOLD): When off-hook, press to enable/disable call hold.
- Ringer LED: Flashes when a call comes in.
- Mute key (
): During calls, press to mute the microphone.
- SOS: Press to dial 112.
- ▲: Off-hook, press to view received calls list. In menu setup, press to scroll up.
: Press briefly to delete one digit/character. In menu setup, press repeatedly to exit.
- MENU: Off-hook, press to enter settings menu. In menu, press as “OK” to confirm.
- ▼: Off-hook, press to view received calls list and scroll down. In menu, press to scroll down.
- R: Access your carrier services.
: Press to redial the last number dialed.
Hands-free: Press to toggle speakerphone.
- Numeric keypad.
- ALARM/P: To set alarms and pause function.
: Access to store/retrieve number in memory keys.
- Speed dial 2: One-touch memory key.
- Speed dial 1: One-touch memory key.
- Speed dial 3: One-touch memory key.
: Press to review dialed numbers.
: Increase handset volume significantly during a call.

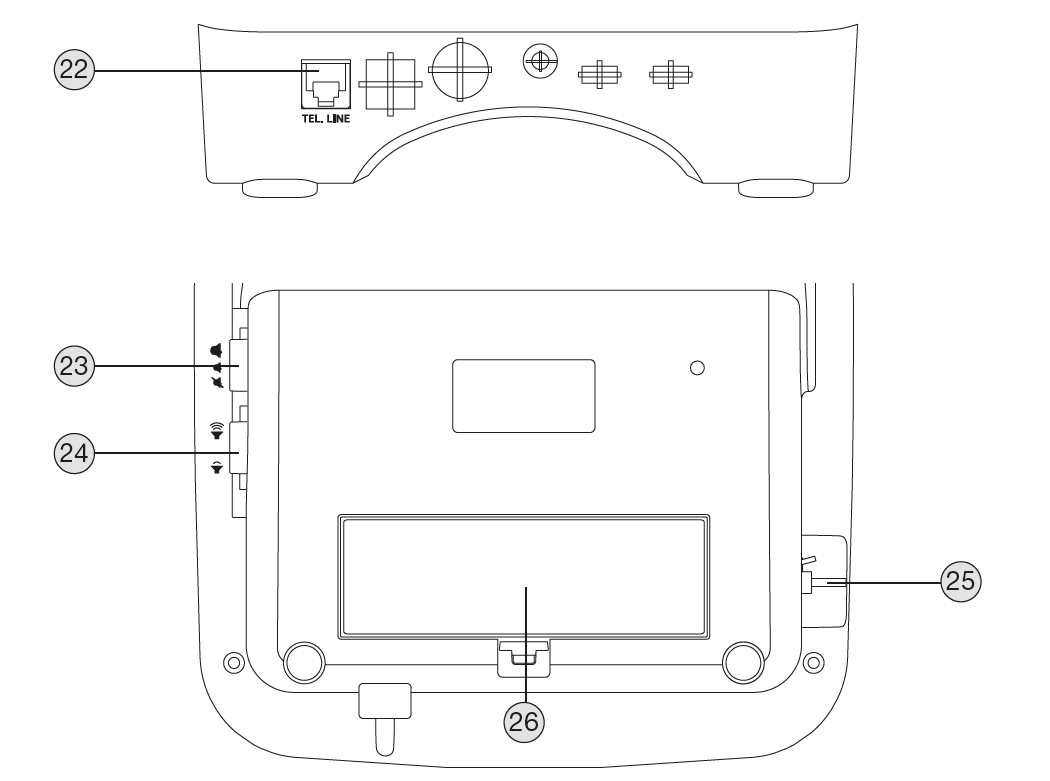

- TEL. LINE: Input for line cable.
- Ringer volume
: high, low, mute.
- Hands-free volume
: high, medium, low.
- HANDSET CABLE: Input for handset coiled cable.
- Battery compartment.
