Installation and commissioning

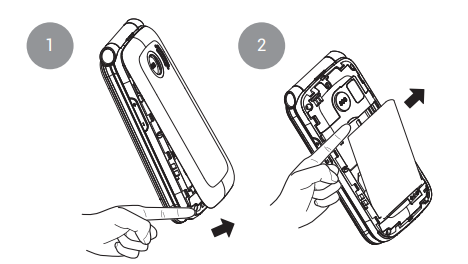

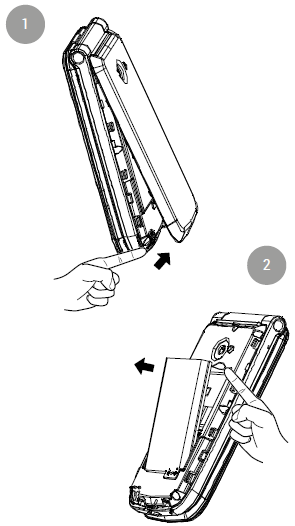

Lift the battery cover using the tab at the bottom of the phone and remove the battery by lifting it from the notch at the top of the battery compartment.

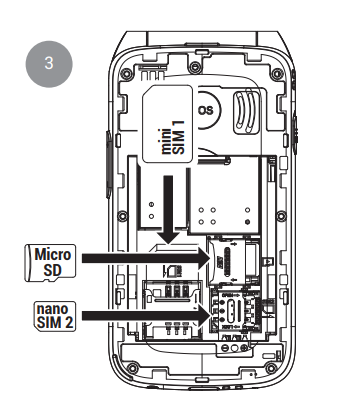

Insert the SIM card(s) (MiniSIM and NanoSIM) in the indicated position, matching the gold contacts on the phone and on the card(s).

If applicable, insert the Micro SD memory card in the indicated position.

Insert the battery, matching the gold contacts on the phone and the battery.

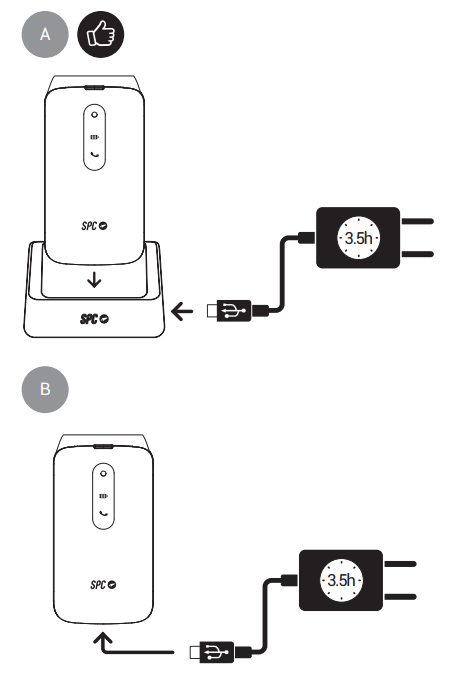

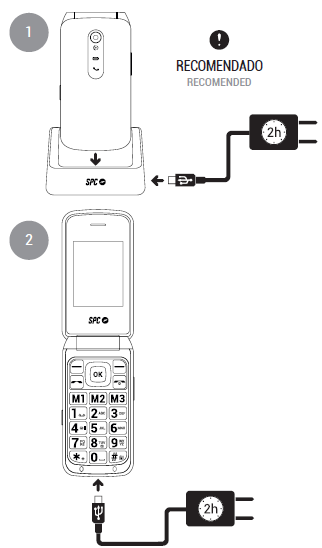

To charge the device, connect the charger to the charging dock. You can also plug the charger into the USB-C port on the bottom of the phone.

Before you start using it, remember to remove the screen protector.

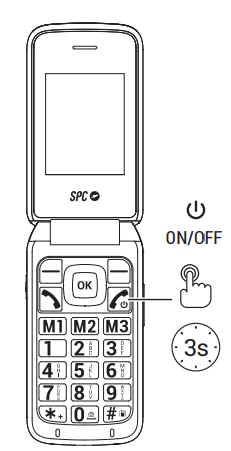

Press and hold the power key for a few seconds to turn on the phone. Enter the PIN on your SIM card. If you’ve inserted two SIM cards, the phone will ask for the PIN of SIM 1 first, and then SIM 2.

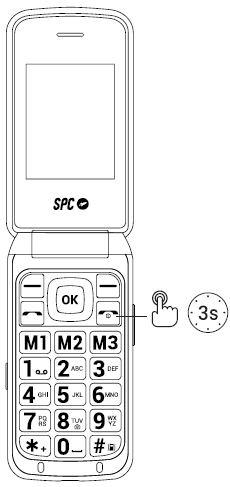

Press and hold this key to turn off the phone.



NOTE: The personal identification number (PIN) protects the SIM card from unauthorized use. The PIN unlock key (PUK) allows you to unlock a blocked PIN. The PIN and PUK are provided with the SIM card. For more details, contact your operator.
